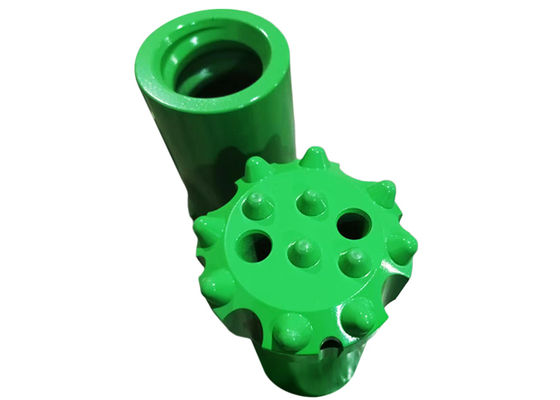

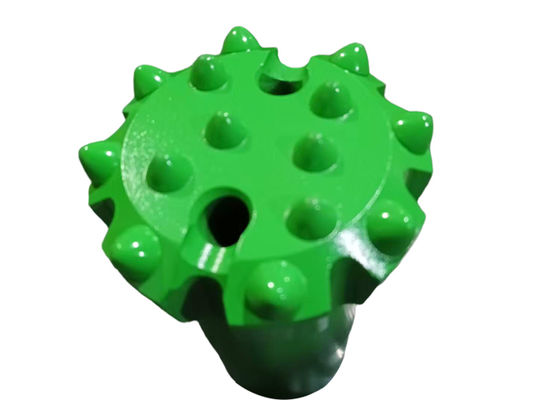

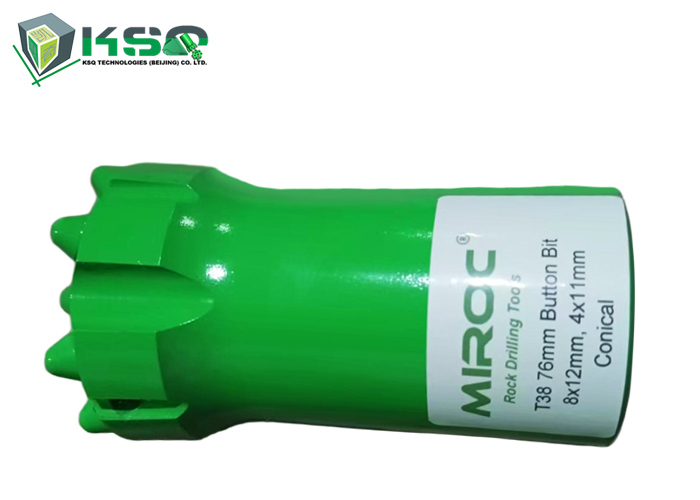

Name: T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38-76mm
Price: 508.50 USD
Availability: InStock

Casa Produtos Ferramentas de perfuração da rocha

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

Detalhes do produto:

Lugar de origem:	China
Marca:	MIROC
Certificação:	ISO
Número do modelo:	T38-76mm

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Tempo de entrega:	20-30
Habilidade da fonte:	3.000

Contato

Descrição de produto detalhada

Produto:	Broca de botão T38-76mm	Forma do botão:	Botões balísticos, esféricos e compostos
Aplicação:	Perfuração de bancada, perfuração de produção subterrânea, perfuração de furos longos	Corpo:	Saia Retrac, Saia Padrão
Palavras-chave:	Bocado de perfuração da rocha	Uso:	Perfuração de rochas
Destacar:	T38-76mm Threaded Button Bit , Ballistic Buttons Rock Drill Bit , Spherical Buttons Tungsten Carbide Button Bit

T38-76mm Tungsten Carbide Threaded Button Bit

Product Description

Description: Threaded button bit

Raw material: Alloy steel and tungsten carbides

Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68

Face: Flat front, drop center

Diameter: 35mm-127mm

Carbide: Ballistic, conical, spherical

Color: Customized

Application: Used to drill deep holes in underground mines, open pit mines, and tapholes

Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings

Key Features

Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
Advanced heat treatment technology for high wear resistance
High toughness and wear resistance
Rich production experience and market feedback data from clients
Large capacity, stable quality, short lead time, competitive pricing

Specifications of Button Bits (T38)

Bit Dia. (mm)	Buttons and Size (mm)	Flushing Hole	Weight (kg)
64	3×10, 1×10 (Front) 6×11 (Gauge)	3 (Front)	1.7
70	3×10, 1×10 (Front) 6×12 (Gauge)	3 (Front)	1.8
76	3×11, 1×11 (Front) 6×12 (Gauge)	3 (Front) 1 (Side)	2.6
89	3×11, 2×11 (Front) 6×13 (Gauge)	3 (Front) 1 (Side)	3.3
