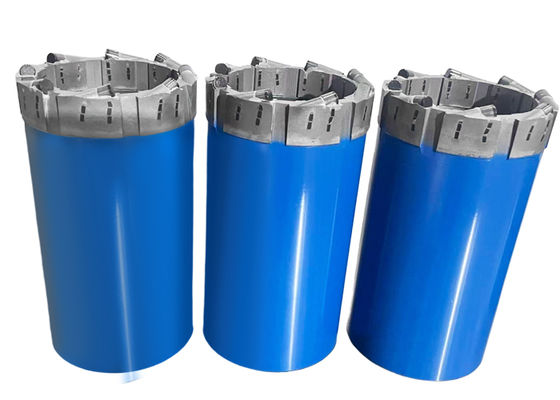

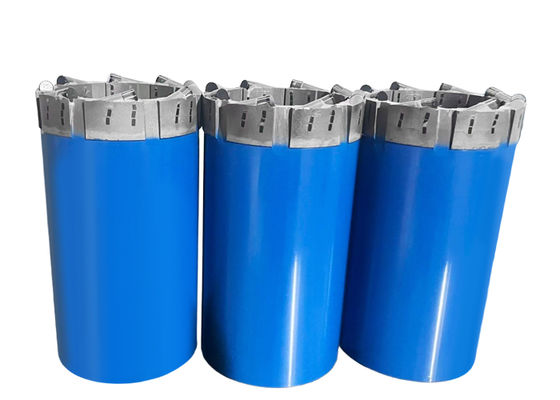

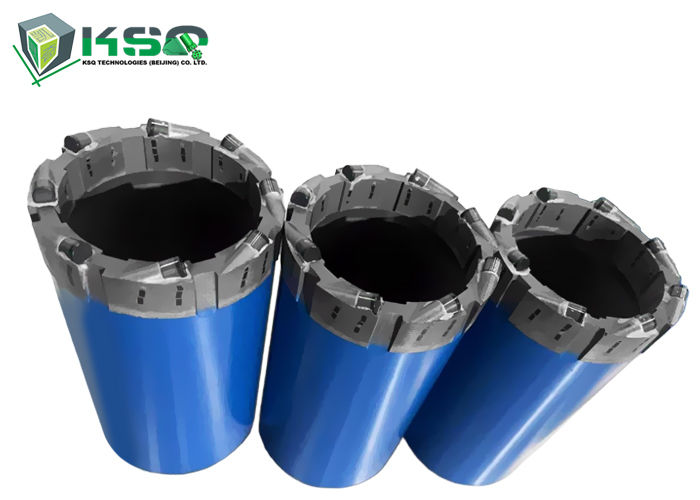

Name: T6-101 Diamond Core Bit with Diamond/PDC Material Standard Crown Profile and Face Discharge Waterways for Mining Exploration
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T6-101
Price: 508.50 USD
Availability: InStock

Casa Produtos Ferramentas de perfuração da rocha

T6-101 Diamond Core Bit with Diamond/PDC Material Standard Crown Profile and Face Discharge Waterways for Mining Exploration

Detalhes do produto:

Lugar de origem:	China
Marca:	MIROC
Certificação:	ISO
Número do modelo:	T6-101

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Tempo de entrega:	20-30
Habilidade da fonte:	3.000

Contato

Descrição de produto detalhada

Tipo:	Forro central	Material:	diamond/PDC
Perfil da coroa:	Padrão	Vias navegáveis:	Descarga padrão /Turbo /Spiral de /Face
Applicaion:	Todo o tambor convencional e do cabo de núcleo	Usar:	Exploração de mineração Diamond Drilling
Destacar:	Diamond/PDC Diamond Core Bit , Standard Crown Profile Diamond Core Bit , Face Discharge Waterways Diamond Core Bit

T6-101 Impregnated Diamond Core Bit for Drilling

Product Description

T6 series core bits are designed for surface exploration when used with the T6 series core barrel.

Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with high-quality synthetic diamonds evenly distributed through a tungsten carbide matrix. During drilling, the matrix wears away evenly, resulting in continuous exposure of new, sharp diamond points throughout the bit's lifespan.

All impregnated bits feature T.C. and diamond gauge protection. The optimal diamond size, concentration, and matrix composition vary according to the hardness and abrasiveness of the rock formations being drilled.

Size Specifications

Size	Outside Diameter (inch)	Outside Diameter (mm)	Inside Diameter (inch)	Inside Diameter (mm)
T6-76	2.997/2.987	76.12/75.87	2.249/2.239	57.12/56.87
T6-86	3.391/3.381	86.13/85.88	2.643/2.633	67.13/66.88
T6-101	3.981/3.971	101.12/100.8	3.115/3.105	79.12/78.87
T6-116	4.575/4.560	116.20/115.8	3.667/3.657	93.14/92.89
T6-131	5.165/5.150	131.19/130.8	4.257/4.247	108.13/107.89
T6-146	5.755/5.740	146.18/145.8	4.847/4.837	123.18/122.89

Applications

Impregnated diamond core bits (including NQ, HQ, T2-76 models) are widely used in mineral exploration and site investigation industries. The impregnated diamond core bit has become the most commonly used type in mineral exploration due to its advantages over other cutting media:
