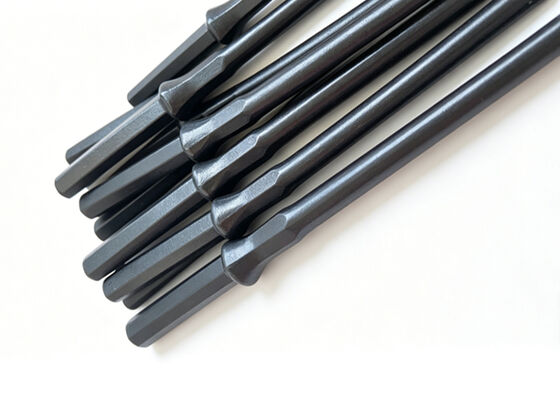

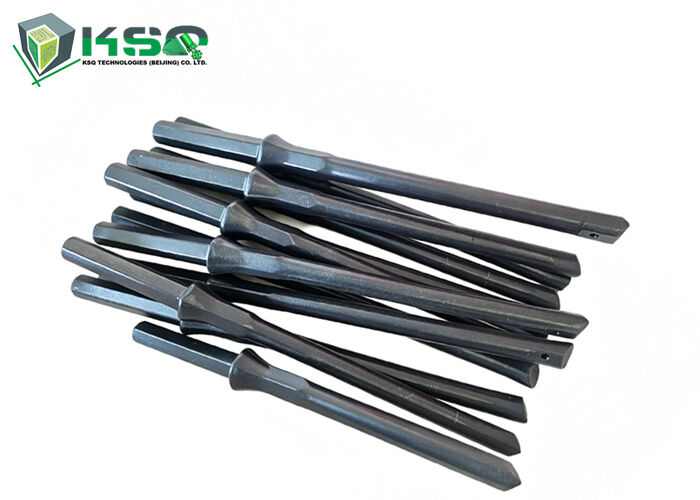

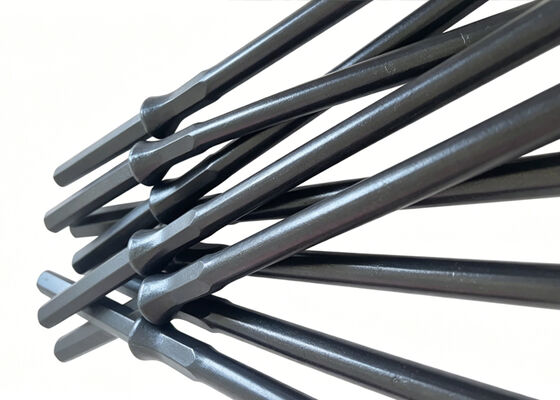

Name: H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod For Hard Rock Mining Quarry
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: H19x108 mm
Price: 25.50 USD
Availability: InStock

Casa Produtos Ferramentas de perfuração da rocha

H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod For Hard Rock Mining Quarry

Detalhes do produto:

Lugar de origem:	China
Marca:	MIROC
Certificação:	ISO
Número do modelo:	H19x108 mm

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	$25.50
Detalhes da embalagem:	caixas de madeira
Tempo de entrega:	20-30
Habilidade da fonte:	3.000

Contato

Descrição de produto detalhada

Haste:	Hex22/25/19	Nome do produto:	Broca Rod integral
Aplicativo:	Perfuração de rochas	Comprimento:	Personalizável
Opções de comprimento:	Varia de 400 mm a 9600 mm	Diâmetros de bits:	20 mm – 42 mm
Destacar:	forged high manganese hex drill rod , hard rock mining integral drill rod , H19x108mm quarry drill rod

H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod

Integral Drill Rods (also known as integral drill steels) are specifically engineered for small-hole drilling applications in demanding environments including stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching operations.

These rods are ideally paired with small-power rock drills such as air leg rock drills and hand-held rock drills. By minimizing impact energy loss, they significantly improve drilling speed and operational efficiency. Designed for borehole diameters ranging from 23 mm to 45 mm.

Technical Specifications

Standard Configurations

Shank Types: H22×108mm, H19×108mm, standard hex
Bit Diameters: 20 mm - 42 mm
Length Range: 400 mm - 6,000 mm

Compatibility

All products are compatible with major brands including Atlas Copco, and are widely used in mining, water well drilling, tunneling, quarrying, construction, and civil engineering projects.

Performance Benefits

Through-hardened shank end provides high wear resistance and extended service life
Stainless steel flushing tube lining prevents corrosion and breakage
Super tough 40SiMnCrNiMo steel engineered for both wet and dry drilling conditions
Special anti-corrosion oil coating protects the flushing hole of the rod
High-quality insert secured using specialized bronze-brazing process

Product Dimensions & Weights

Item	Length (mm)	Length (inch)	Bit Diameter (mm)	Weight (kg)
Chisel Bit Integral Drill Steel Shank 19 x 108 mm (3/4" x 4 1/4")	400	1 1/3	29	1.3
	500	1 2/3	29	1.5
	800	2 5/8	28	2.2
	1000	3 2/7	28	2.6
	1200	4	27	3
	1600	5 1/4	27	3.9
	2400	7 7/8	26	5.7
	3200	10 1/2	25	7.5
	4000	13 1/8	24	9.2
